At test-weights.co.uk we hire proof load test weights for crane testing with configurations available from 20kg to hundreds of tonnes.
Whether you are commissioning a new crane, returning equipment to service after substantial modification or repair, or carrying out a scheduled thorough examination, using test weights is one of the most technically rigorous methods of verification available.
Why our system is better for Crane Testing
Traditional test weights – concrete blocks, steel slabs, re purposed kentledge etc – create real problems on site. Awkward to handle, difficult to secure, often supplied with no documentation or lift plan, and frequently relying on cargo lashing straps that offer little genuine restraint.
Positive securing – no lashing required

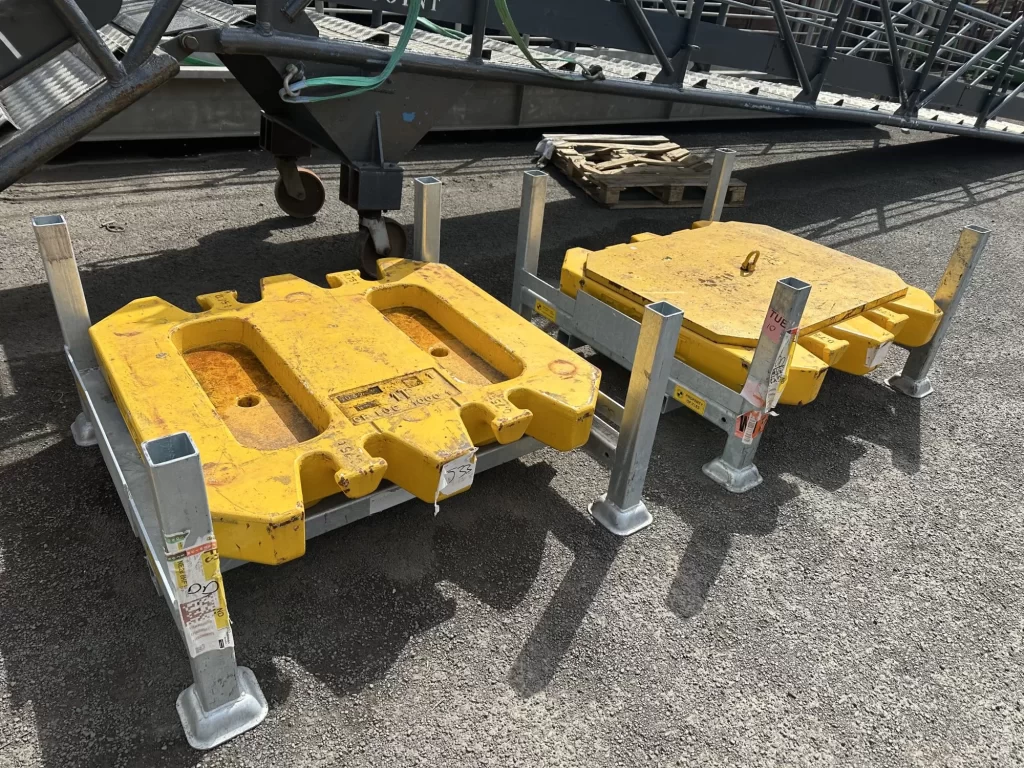

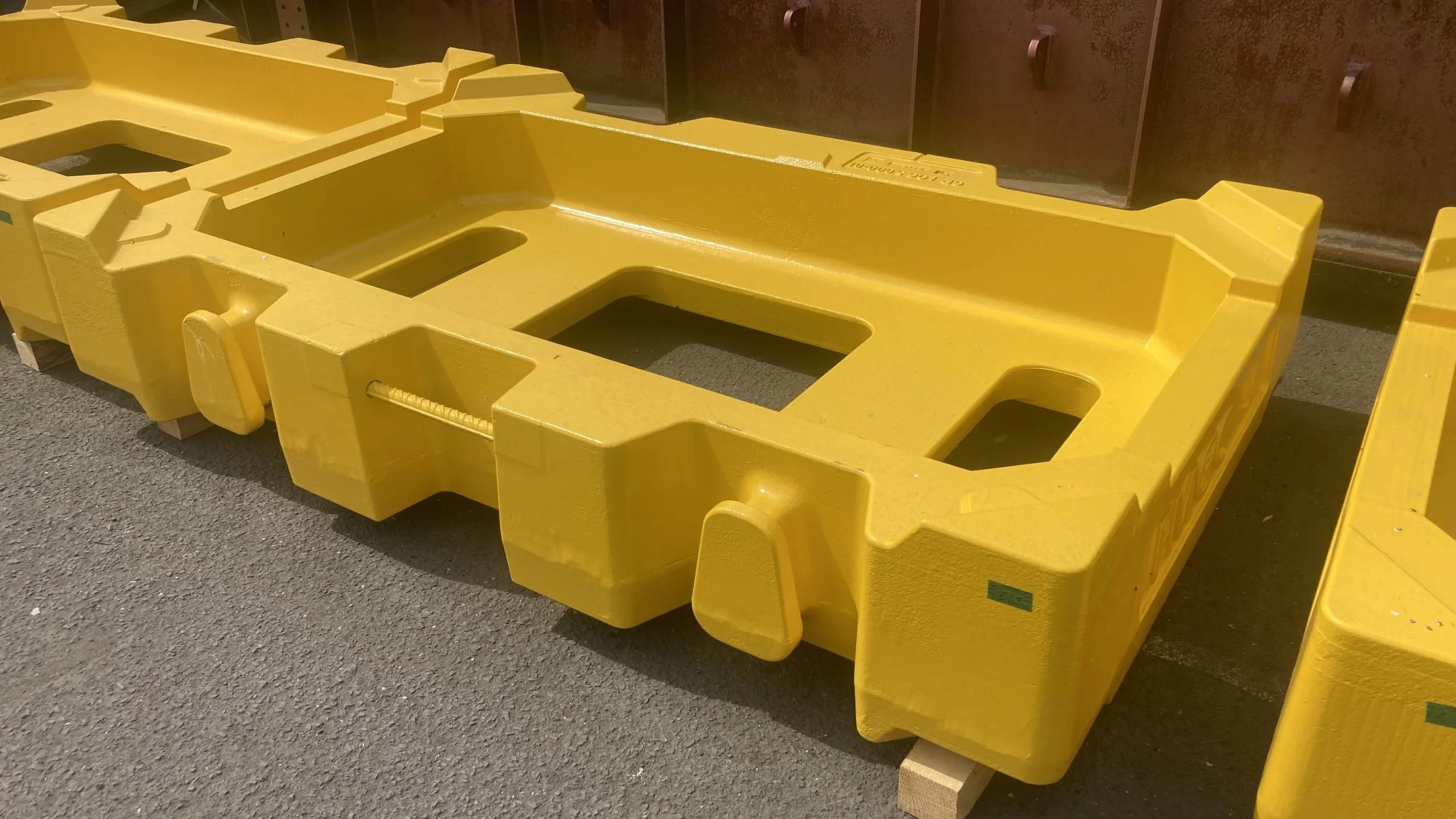

The 1Te weights fit inside the recess of the 5Te weight and are positively secured by an interlocking design. The 5Te weights lock onto either a cradle or a lower weight by a positive interlock, even when fully loaded
with 1Te weights. The is no reliance on lashing straps.
Integral rated lift points

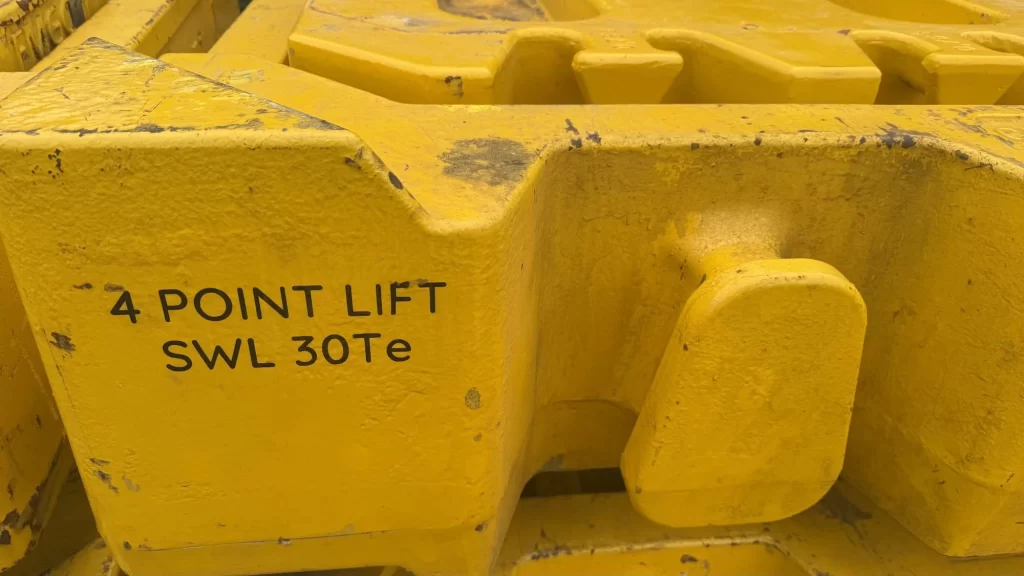

All 1Te and 5Te weights have dedicated trunnion lift points.
Smaller weights utilise central lift points.
Flexible configurations

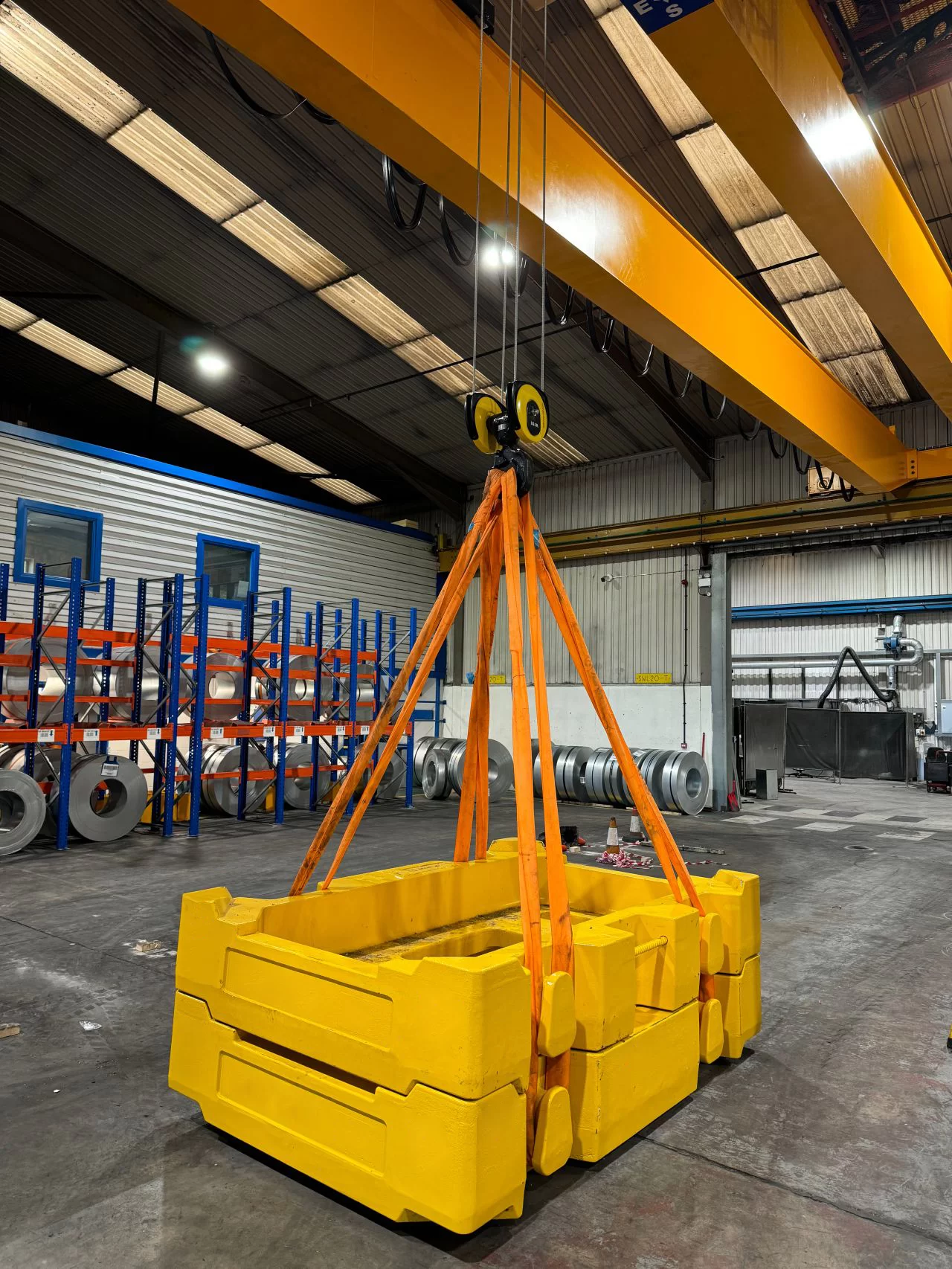

Quickly and safely, you can achieve the SWL, +10% and +25% overload tests required to satisfy the regulations. As an example, for a 20Te crane the test weights could be reconfigured to achieve 20Te (SWL), 22Te (+10%) and 25Te (+25%) in a matter of minutes.
Simple to use and simple to produce a perfectly balanced test load.
Full documentation
Every hire comes with inspection certificates for the weights. Certified rigging equipment is available on request.

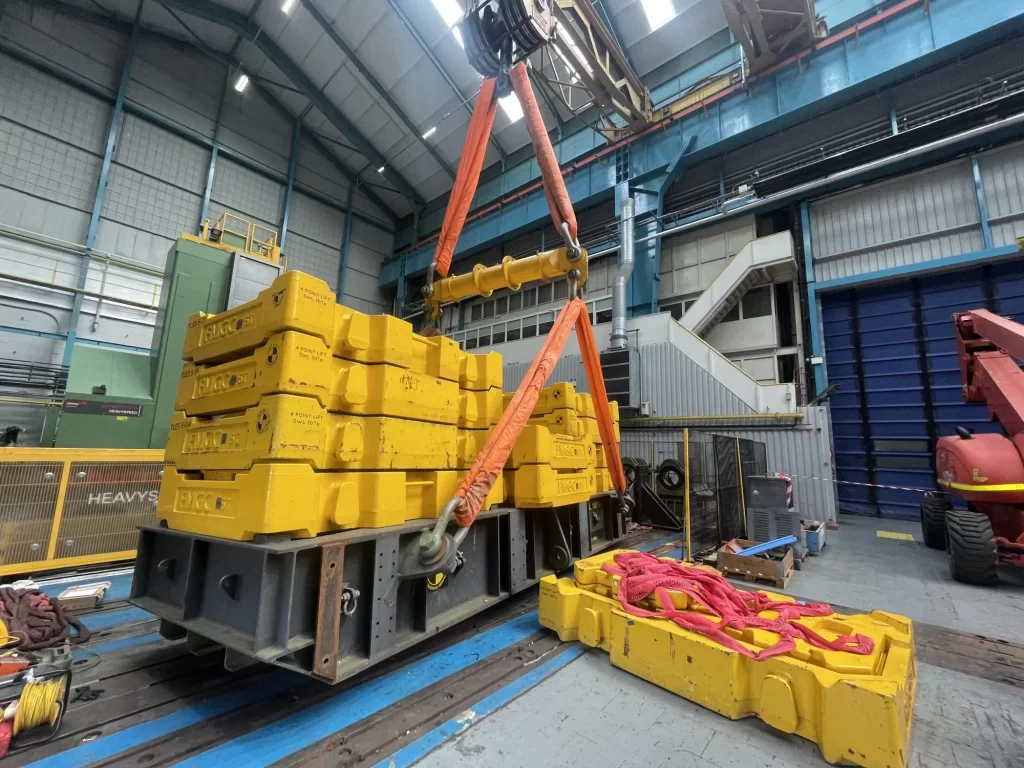

Weight configuration options
Our stacking weight system can be configured to suit the proof load requirements of a wide range of crane capacities:
Up to 3Te
Up to 12.5Te
Up to 30Te
Up to 100Te
Up to 180Te
Up to 300Te
Every hire includes the weights with their own inspection certificates. Certified load cells and necessary rigging equipment can also be supplied as part of the hire package – just let us know your requirements when you enquire
Types of crane we support :
Our test weight system is suitable for proof load testing a wide range of crane types including but not limited to:
- Mobile cranes
- Tower cranes
- Overhead cranes
- Gantry cranes
- Vessel / Ship cranes
- Davit cranes
- Jib cranes
- Knuckle boom cranes
- Offshore pedestal cranes
Delivery

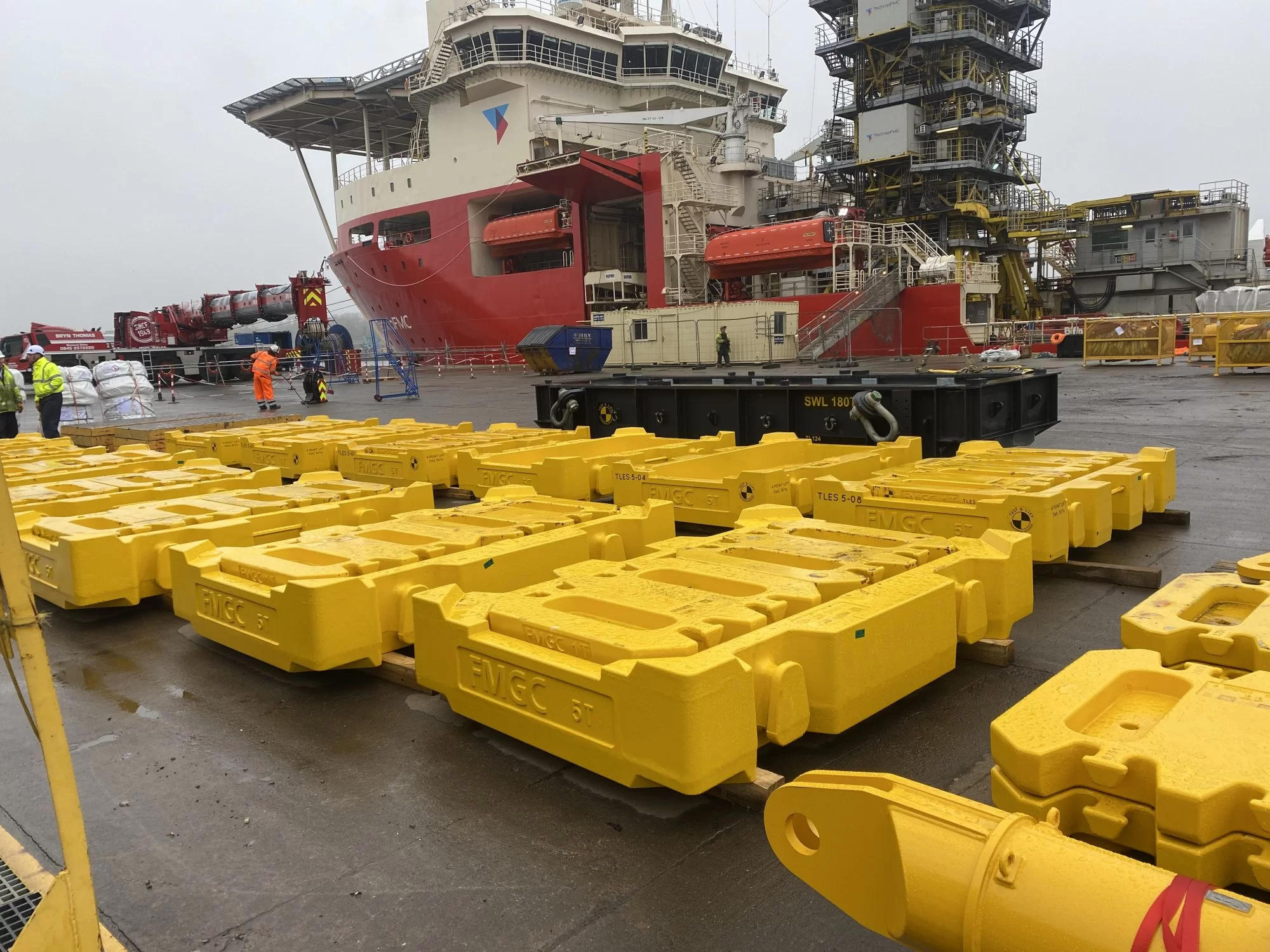

With stockists in England, Scotland and mainland Europe, we deliver proof load test weights to crane testing sites anywhere.
The full hire package – weights, inspections certificates and any requested rigging equipment – arrives ready for use.
Enquire About Test Weight Hire
Tell us your required load, the equipment to be tested, your site location and preferred hire dates and we will come back to you with availability and a quotation.
Call us on 0191 432 9343, email hire@test-weights.co.uk or complete our enquiry form.
